Products

Room/Hot temperature Multi handler

 (4/8ch) (S9+HS up to 32ch)

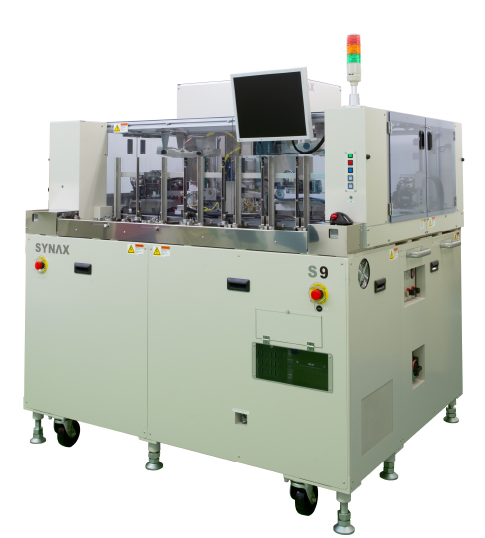

S9, S9+HS New

Devices: BGA, CSP, BCC, MLF, QFN, QFP

Size: 3.0mm - 50mm (Depend on socket)

Index Time: Less than 0.35sec.

Throughput: up to 8500 (Depend on condition)

Contact pitch Matrix: 4x2 Pitch :40x60mm

Contact Mode: 1 to 8 site

Jam rate: 1/20,000

Optional: Kitless, ATC

S9+HS

16-32 site high Speed Model

S9 Plus able to testing

up to 32ch with more higher

UPH. up to 16500*Depend on condition

(Also many additional customized model available.Please consult with sales for more detail!)

Tri-Temperature Multi handler (4/8ch)

SX 2400

Devices: BGA, CSP, BCC, MLF, QFN, QFP

Size: 3mm - 40mm (Bigger package option up to 50mm Depend on condition)

Index Time: Less than 0.8sec

Throughput : 5,000

Contact pitch Matrix:

All type of pitch (mm & inch pitch)

Contact Mode: 1 to 8 site

Temp range: -55C to +175C

Guarantee Max 72 hours without frost

Optional: High contact force 300kg/150kg



Additional customized model available

Please consult with Sales!

New!!

SYNAX System level tester

S1-SLT

Low cost, High performance

OurS1-SLT able to customize for customer's actualproduction plan.

Devices: BGA, CSP, BCC, MLF, QFN, QFP

Device Size: 40 x 40 to 70 x70 mm

(Availlable option for more small devic, more big device)

Channel:  1site Thermal head

(Able to upgrade more mult site configration)

Jam rate: 1/20,000

Option: OCR camera, DDD Laser sensor, Area sensor,Load cell etc.

High contact force: 120Kg/ 150Kg (Option) / site

For more details, please consult with Sales!







We will offer best

custom

solution!



Ultra accuracy small package, Low cost handler

S1 series

Low cost, high performance.

Engineering / production Handler that customized to customers' needs.



Devices: BGA, CSP, BCC, MLF, QFN, QFP

Device Size: 1mm-60mm

Channel: 1 to 16  site

Temp range: -55 to 175C (Uses refrigerator unit)

Contact Force: 85kgf (std), 225kgf (optional)



Tape and reel model, more compact model,

Active Thermal model also available.

Please consult with Sales!

Customized models

Auto Socket Pin Insertion Machine

SP1

S1 enhanced  SLT models,

CMOS sensor handler

ATC modules,

and so on.

CMOS module Image testing handler

SX 7200

SYNAX Thermal Solution STC-1

Customized products to suit your needs!

New!! Room/Hot temperature Tray to tape

Cross over handler (4/8ch)

S9 TR

Launched cross over model S9 TR

(Tape & Reel)



For more detail please consult with Sales!

New model

S9L release!

Simple and high performance

SYNAX S9L series Just released!!

Please ask more detail with our sales!

AX series

High speed inspection tape and reel handler

AX 3

Devices: Semiconductor device, Lead, Non Lead

(For other category devices please consult us such as LED etc.)

Device Size: 0.8mm - 2.5mm

Index time: Less than 0.13sec.

Throughput: Approx. 25,000

Parts feeder: Bowl sorting

                       Capacity approx. 4000pcs

Tape lane: 1 lane

Tape width: Adjustable up to 24mm

Pitch: 2mm,4mm,8mm

6axis vision inspection

Function test stage

De-tape function *Option



Additional customized model available

Please consult with Sales!
